Electronic hit detection & digital target system for shooting training and simulation
Digital target system and electronic hit detection for mobile shooting training in public-sector use
Electronic hit detection with a digital target system enables precise shooting training, realistic shooting simulation and automated weapons testing. The camera-based hit display with infrared illumination delivers results in real time and with high accuracy.
For the TARGETMASDR shooting-training platform, we developed the electronic hit detection and evaluation logic for a mobile shooting-training system. The focus was a solution for digital hit display, electronic shot detection and camera-based target analysis that can be used reliably, precisely and flexibly in training operation.
The platform is designed as a mobile, ready-to-use system – connect it, start it and train immediately (“Plug & Score”). It can be used in indoor shooting ranges and adapted training environments and is designed especially for public authorities and security organizations. In addition to the pure hit display, evaluation quality, real-time capability, adaptability to different system widths and easy commissioning were particularly decisive in development.
Further information on the overall platform can be found directly at TARGETMASDR.
Project idea
- Electronic shot detection for real training situations and digital target systems
- Digital hit display on target image and operator monitor
- Evaluation of shot sequence, time and score
- Support for different training modes and target types
- Practical use in mobile or existing systems
Project requirements
- Real-time capability for immediate training feedback
- Robust evaluation for reproducible results
- Flexible integration into different training concepts and system geometries
- Clear usability for instructors and trainees
- Expandability for programs, targets and evaluations
Electronic hit detection and digital hit display in real time

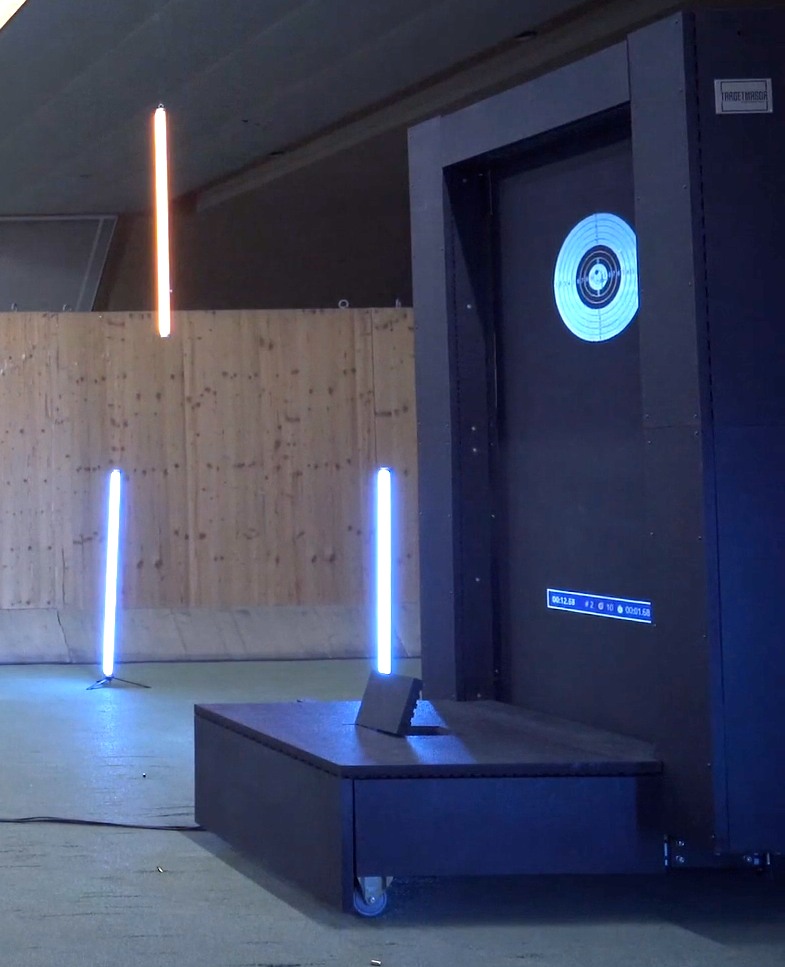

At the center of the solution is camera-based hit detection with infrared illumination. 9 mm projectiles can reach speeds of more than 350 m/s. The design of the detection system targets an accuracy of at least ± 5 mm so that hits can be localized and evaluated reliably even in demanding training situations.

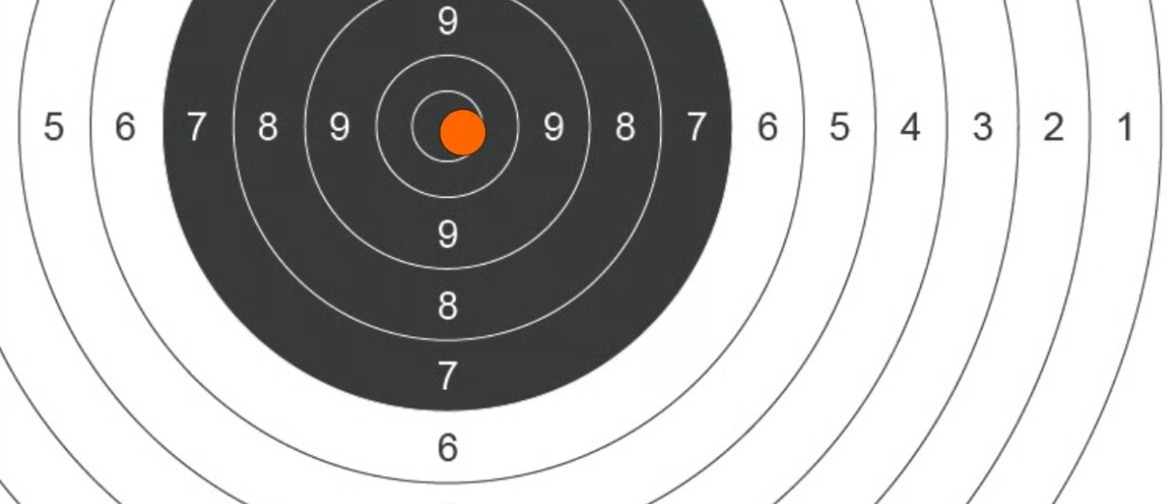

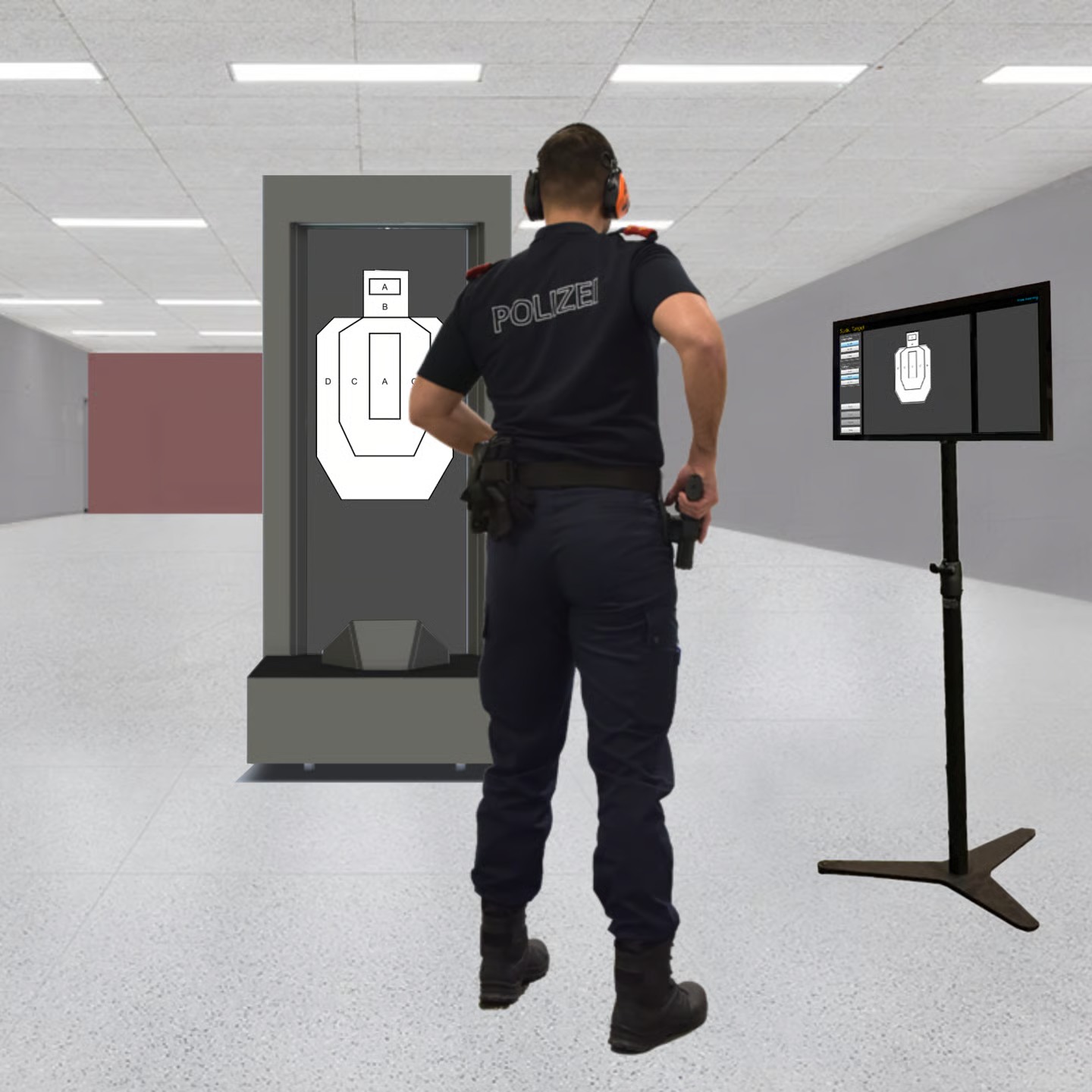

The hits are processed immediately and displayed as an electronic hit display on the digital target system and on a monitor. This provides clear feedback during the exercise about shot position, sequence and training result.
For training systems of this type, a pure hit display alone is not enough. What matters is that the information is available promptly and clearly. Only then can trainees and instructors immediately classify the result and integrate it into the training process.
At the same time, the detection system must fit into an environment in which different exercises, target displays and shot sequences occur. That is exactly why the solution was designed to support structured training as well as dynamic scenarios.
- Real-time display: hits are visualized directly
- Camera-based: evaluation via optical capture with infrared illumination
- Precise: target accuracy in the range of at least ± 5 mm
- Fast: designed for 9 mm projectiles up to 400 m/s or 5.56x45 mm up to 1200 m/s
- Flexible: tested with a wide variety of calibers from 4.5 mm to 9 mm
- Traceability: shot sequence, times accurate to 0.01 s and scores are documented
- Training benefit: immediate feedback for correction and evaluation
- Practical: suitable for mobile and integrated training environments
Digital hit evaluation, hit analysis and training data for shooting training and simulation
A central advantage of the system is its high efficiency in shooting training: hits are shown to the trainee immediately and clearly on the electronic target system. This creates directly usable feedback without interrupting the training sequence.
After completing an exercise, the results are available without waiting time – either as a printout or as a PDF report. This enables direct evaluation, documentation and sharing of the training data.

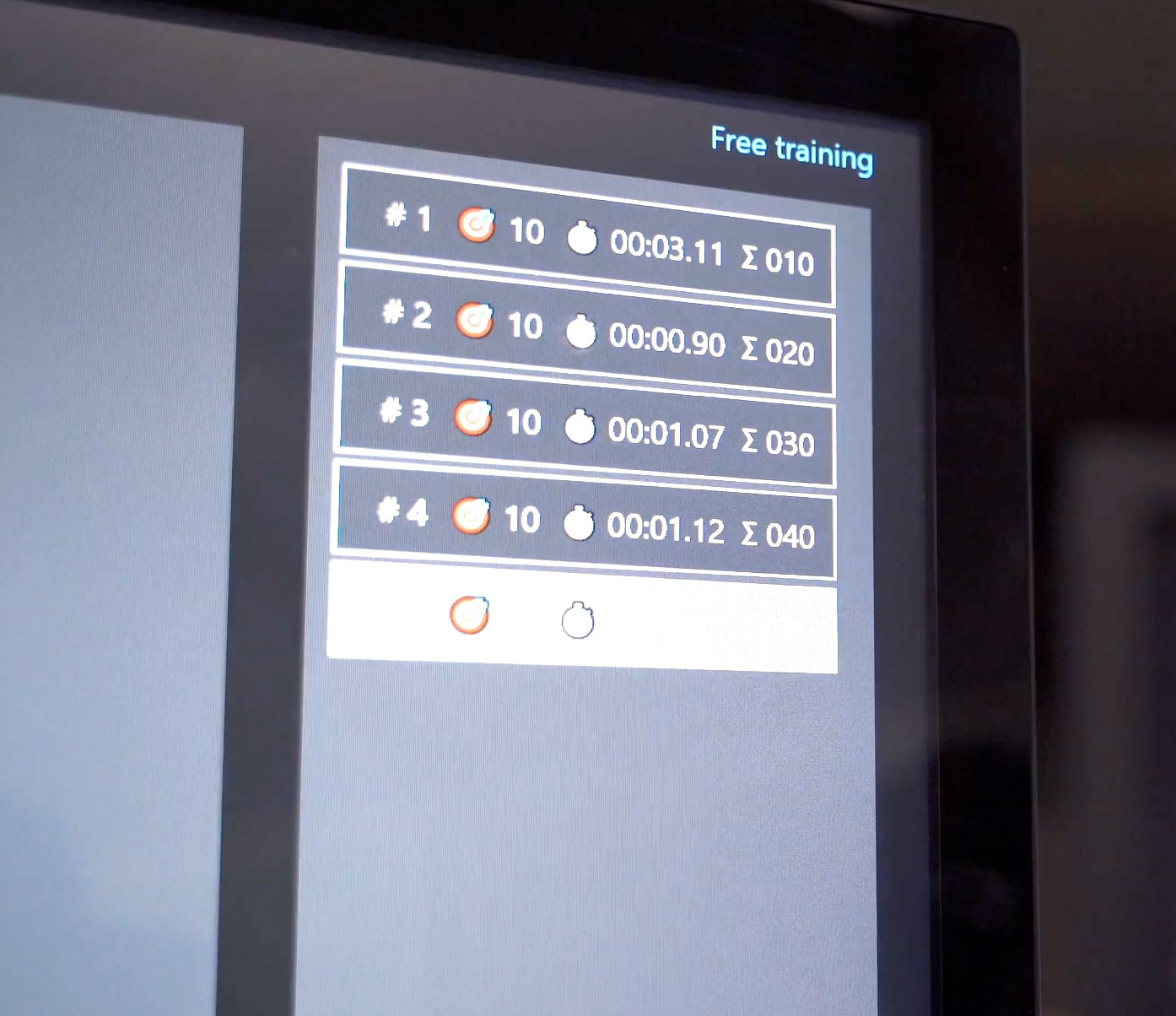

In addition to hit detection, the structured evaluation of training data was an essential part of the project. The solution supports the display of shot sequence, score as well as times and split times. In addition, shot groups can be analyzed, training data documented and prepared for further reports.
Components of the evaluation
- Hit display on screen, touchscreen or tablet
- Digital hit position as the basis for evaluation and training
- Shot sequence with consecutive numbering
- Score evaluation per hit and overall
- Time measurement including split times and reaction time
- Group and shot-pattern analysis
Added value for training and testing
- More objective evaluation of exercises and performance levels
- Better comparability between trainees or runs
- Reports and summaries for documentation and evidence
- Data basis for structured training processes
- Basis for later extensions and custom evaluations
This turns electronic hit detection not only into a display instrument, but into a central building block of digital training management. Especially in professional training environments, this connection between capture, analysis and documentation is decisive.

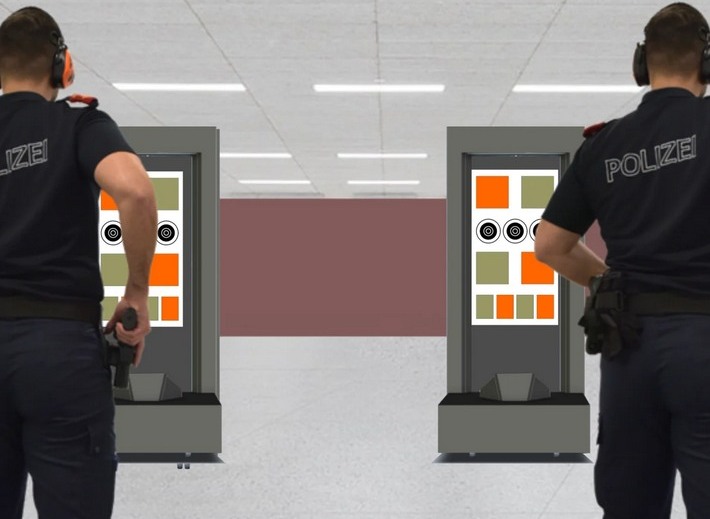

Shooting simulation and support for different target images and training scenarios
The solution was developed for use in a platform that supports static, dynamic and interactive target images. This means hit detection can be used not only in classic shooting exercises, but also in scenarios with decision logic, reaction requirements and varying training sequences.
Examples of supported training modes
These include classic target programs as well as duel situations, friend-or-foe scenarios, multiple-target exercises or image sequences in the style of “Shoot / Don’t Shoot”. The evaluation remains consistent even when target type, timing or scoring system differ.
Digital distance simulation and variable training design
Another important aspect is the combination of real shooting distance and digital simulation. This allows different training distances and sequences to be represented without having to rebuild the physical system for every exercise. This increases the flexibility of the overall solution.
Custom target images and programs
With suitable tools, target images, hit zones and scoring logic can be adapted to customer-specific requirements. This is especially important when existing training guidelines, test procedures or special training scenarios are to be represented digitally.
Integration into mobile shooting-training systems and existing ranges
TARGETMASDR is designed as a mobile system and can also be integrated into existing training structures. For the project, not only the technical function of hit detection was relevant, but also its practical usability in real training operation.
The hit-detection system can be adapted for different scenarios and wider installations. This allows the solution to be used sensibly not only in compact shooting rooms, but also in extended or customer-specific training environments.
The system can be positioned flexibly and removed from the shooting room again if required. This makes it suitable both for dedicated training areas and for environments in which a solution is only to be used temporarily or combined with other systems.
At the same time, the platform supports integration into existing training equipment, for example in combination with other target systems, courses, cover elements or complementary training concepts. Electronic hit detection provides the digital basis for feedback and evaluation.
Use in quality assurance, weapons testing and automated hit analysis
Electronic hit detection is particularly suitable for automated weapons tests in which hit accuracy, shot grouping and firing behavior must be measured objectively. Results then relate to the respective combination of weapon and ammunition used.
The system can be used for short functional tests as well as for long-running test series. This makes it possible to systematically capture and evaluate changes in firing behavior over time, temperature or load.
Especially in technical or industrial applications, this creates a reliable data basis for test processes, series inspections and development work. The digital evaluation enables fast analysis and direct documentation of the results.
- Objective evaluation: reproducible measurement of hit accuracy
- Series tests: suitable for repeated and automated test sequences
- Long-term tests: analysis of drift and behavior over many shots
- Documentation: digital reports for quality assurance and evidence
Our contribution to the project
In this project, Dat-inf implemented electronic hit detection as an essential part of the overall solution. This includes the technical basis for capturing hits, their software-supported processing and the provision of data for display and evaluation.
Such projects lie exactly at the intersection of our competencies in machine vision, measurement systems, custom software development and integration into existing technical environments.
Further solutions: 3D machine vision | Measurement systems | Industrial machine vision
Frequently asked questions about electronic hit detection
How does electronic hit detection work?
Electronic hit detection is camera-based and uses infrared illumination. The position of the projectile is captured as it passes through the target zone and evaluated in real time.
How accurate is digital hit detection?
The accuracy is typically in the range of ±5 mm. This allows both training evaluations and precise weapons tests to be carried out reliably.
Can hit accuracy be measured automatically?
Yes, with electronic hit detection, hit accuracy, shot groupings and firing behavior can be measured and documented automatically – ideal for quality assurance and test runs.
What exactly was developed in this project?
Developed were the electronic, camera-based hit detection including infrared illumination, a calibration method, the processing and provision of data for display, analysis and training evaluation within the TARGETMASDR system, suitable for shooting ranges, mobile training facilities and test environments.
Which training forms can it support?
The solution is suitable for static and dynamic target programs, interactive scenarios, time-dependent exercises as well as documented training and testing workflows.
Why is the evaluation so important?
Only structured digital hit evaluation turns individual hits into usable training data. This is decisive for feedback, comparability, performance assessment, documentation and the objective evaluation of shooting exercises.
Can such a solution be adapted to customer-specific requirements?
Yes. Target images, scoring logic, training programs and even the geometry of the hit-detection system can be adapted individually depending on the application, system width and training objective.
